Type: | Demister Pad | Hole Shape: | Other |
---|---|---|---|
Length: | As Request | Usage: | Air Filtration |
Filter Rating: | 98%-99.8% | Blade Spacing: | 25-40 |
High Light: | metal mesh filter,ss filter mesh |
Stainless Steel316 Wire Filter Mesh High Abrasion Resistance Easy To Replace
Wire Filter Mesh Product Description
Wire mesh demister (also known as wire mesh demister, wire mesh foam trap) is used to remove the fog
entrained in the gas (fog droplets), recover expensive fog droplets (precious materials), or purify the gas
to reduce impurities in the gas. The wire mesh mist eliminator is made of corrosion resistant metal wire of
0.15 m~0.25 m m, or wire mesh woven by special warp and weft with engineering plastic wires such as P
and P T F E, and then pressed into wave type (W type) and overlapped. The wire mesh demister has the
characteristics of small pressure drop, large specific surface area and high demister efficiency. For fog
droplets above 3 microns, the efficiency of fog removal can reach more than 98%.
Product Specification
Material |
Stainless steel:304,304L,316,316L etc. |
texture |
stainless steel cloth |
specification |
Customized to customer requirements |
Hole shape | other |
Length | As requirment |
Wire Filter Mesh Features
High tensile steel material.
High integral rigidity.
Good filtering fineness.
Abrasion resistance.
Weather resistance.
Corrosion and rust resistance.
Easy to clean and install.
Special shapes and specs can be customized.
Wire Filter Mesh working principle
Working principle of screen mesh mist eliminator is gravity and inertia shock when the fog gas to a certain
speed through the mist eliminator, it will collide with the internal structure of the mist eliminator and adhere
to the surface of the mist eliminator demister fog on the surface of the internal structure by diffusion and gravity
gradually accumulate, when weight reaches a certain level, the fog and mist eliminator internal structure so as to
realize gas-liquid separation, to achieve the purpose of purifying gas.

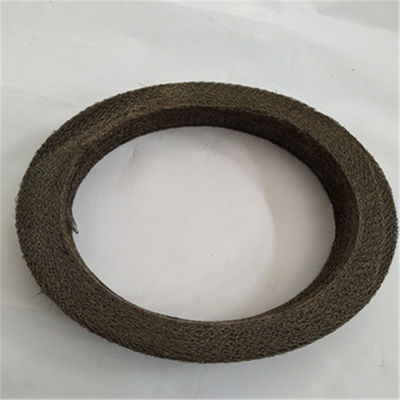

Product Picture
