| Technique: | Welded | Feature: | Excellent Filtration Performance |
|---|---|---|---|
| Mesh Count: | 2-635 Mesh | Mesh Opening: | 5-2000um |
| We Are Factory: | Low MOQ | Our Advantages: | 20 Years' Experience |
| High Light: | sintered mesh filter,sintered filter disc |
||
Sintered Metal Fiber Felt Main Applicaiton:
1. Polyester melt purification in chemical fiber and membrane industries.
2. High temperature filtration and corrosion liquid filtration in petroleum industry.
3. Hydraulic fuel and lubrication oil filtration in mechanical equipment.
4. Liquid purfication in pharmaceutical, biological and beverage industries.
Sintered Metal Fiber Felt' Performance and Advantages:
1. High dirt holding capacity, high filtering accuracy, slowly rising of pressure, longer changes cycle.
2. Corrosion resistance of nitric acid, alkali and organic solvent and medicine. It can be used for a long period of service in the temperature of 600 temperature.
3. High porosity and excellent permeability which results in low pressure drop and large flow.
4. Pleatable, provide a large filter area per unit of volume, and it can be welded and machined.
5. Cleanable, can be used several times.
Material of the Fiber Felt:
00Cr17Ni14MO2(316L)OCr17Ni14MO2(316)OCr18Ni9(304)pure-nickel
Max apply size: 1200mm mutiply 1000mm, special sizes are available on request.
Process: Can be processed to disc shape, candle shape, wave shape, etc.
Lier Filter Has all kinds Of Idustrial Sintered Filters that are widely used in water treatment, pharmaceutical, chemical ,food ,beverage,oil filtration and etc.They could be Filter Cartridge,FilterDisc,Filter Mesh,Air Filter,Water Filter,Oil Filter,Chemical Filter,Filter Element and etc.We are the leading Manufacuter and exporter in China.

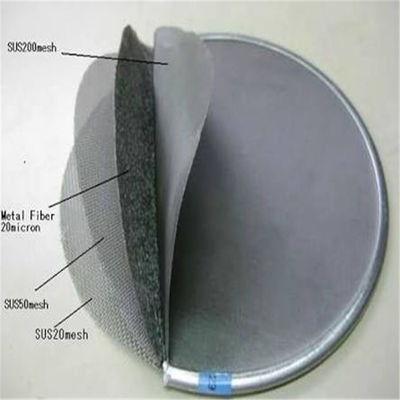

It is made of extremely fine steel fiber (micron grade) by sintering in high temperature after special non woven matching and laying.With the pore gradient formed by layers of different pore sizes,the stainless steel sintered fiber felt product can achieve higher rating and larger holding capacity,and larger filter area,and can keep the filtering working continuously.
| Characters | 1.High dirt holding capacity, high filtering accuracy, long replacement period; 2.High porosity ,excellent permeability,low pressure drop and large flow. 3.Corrosion and high temperature resistance of acid, alkali and organic solvent, pharmaceutical etc. Resistance , can be used under 600℃ for long time. 4.Easy to be processed and welded.5.Special specifications are on request. |
| Application | 1. Polyester melt purification in chemical fiber and membrane industries. 2. High temperature filtration and corrosion liquid filtration in petroleum industry. 3. Hydraulic fuel and lubrication oil filtration in mechanical equipment. 4. Liquid purification in pharmaceutical, biological and beverage industries. |
