| Length: | 10",20",30",40" | Material: | SS304/316 |
|---|---|---|---|
| Usage: | Liquid Filter | Application: | Food Grade Or Industrial Application |
| Function: | Removal Of Impurities | Surface Treatment: | Mirror Polishing Or Electrolytic Polish |
| High Light: | metal filter housing,ss micron filter housing |
||

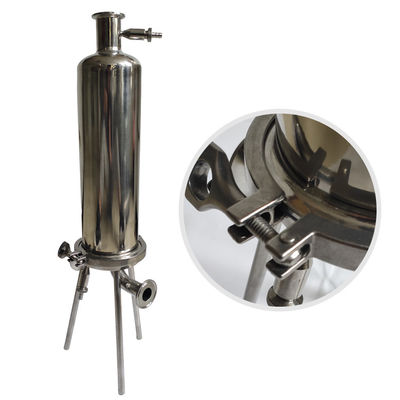

Stainless Steel 304 Cartridge Filter Housing Filtration Accuracy Above 3 Micron Durable
Cartridge Filter Housing Product Description
The cylinder shell generally made of stainless steel , the internal use of PP melt blown , burning, folding,
titanium filter, activated carbon filter and a tubular filter as the filter element is selected according to the
different filter media filter element and design technology, to meet the requirement of water quality. It can
be used for solid-liquid separation of various suspensions with high environmental requirements and high
filtering accuracy. It has a wide range of applications and is suitable for pharmaceutical, food, chemical,
environmental protection, water treatment and other industrial fields.
|
Lid/cover Type |
Swing Bolts or Tri Clamp(only for single round) |
|
Designed Pressure |
10 bar(145 psi) with in 30 mins |
|
Operating Pressure |
Max. 7.2 bar(108 psi) |
|
Temperature |
Max. 105 ℃ (design 140 ℃) |
|
Cartridge type |
DOE(220), 222, 226, etc |
|
Cartridge Capacity |
1, 3, 5,8...30, 36, 45 |
Product Features
Three legs support, height adjustable, is not easy to damage the clean room on the ground.
Silicone rubber, epdm rubber and PTFE sealing material.
Filter cartridge has various standard connection types, lotus type distribution, CNC machining, high precision,
no effusion, no dead Angle.
Surface adopts mirror polish. Roughness is 0.4μm for outer surface, 0.3μm for inner surface.
ISO - 2852 standards, sanitary level configuration, the top of the pressure gauge connection is stretching R
model plane welding, quick release coupling as standards configuration.
Cartridge Filter Housing Product Application
Stainless steel liquid filter mainly used in pharmacy, chemical refinement, brewing, drinking water and other
industrial fields, for the liquid filtration and clarification filtration purpose. It can effectively remove the suspended
substances, rust, etc. All of the material which contact with main liquid are made of 316L and 304 stainless steel,
and after mechanical and electrical polishing, it can provide excellent durability and maximum corrosion resistance
ability, the filter can match with most liquid materials and flow rate request.
Product Details
