Product Details:
Payment & Shipping Terms:
|
| Material: | Metal | Loading Capacity: | 1000kg |
|---|---|---|---|
| Type: | Wire Container | Size: | 1000*800*840 Mm |
| Color: | Silver | Use: | Industrial Warehouse Storage |
| High Light: | wire mesh pallet box,wire container storage cages |
||

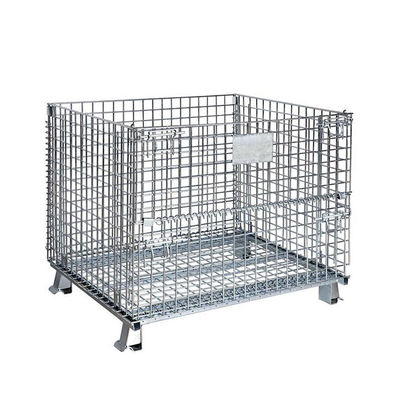

High Quality 1000*800*840 Mm Metal Wire Mesh Storage Cages Pallet Cage
1000*800*840 Mm Metal Wire Mesh Storage Cages Pallet Cage Specification
| Item No |
Wire Diameter ( mm) |
Wire Mesh(Grid) (mm) |
External Size (mm) |
The Height of the foot (mm) |
Capacity (kg) |
| ATG-7-1 | 6.0 | 50*50 | 800*600*640 | 100 | 800 |
| ATG-7-2 | 6.0 | 50*50 | 1000*800*840 | 100 | 1200 |
| ATG-7-3 | 6.0 | 50*50 | 1200*1000*890 | 100 | 1500 |
| ATG-7-4 | 6.4 | 50*50 | 1000*800*840 | 100 | 1500 |
| ATG-7-5 | 6.4 | 50*50 | 1200*1000*890 | 100 | 2000 |
| ATG-7-6 | 6.4 | 50*50 | 1000*800*500 | 100 | 1000 |
| ATG-7-7 | 6.4 | 50*100 | 1000*80*840 | 100 | 1000 |
| ATG-7-8 | 6.0 | 100*100 | 1200*1000*890 | 100 | 500 |
| ATG-7-9 | 6.4 | 50*100 | 1200*1000*890 | 100 | 1000 |
| ATG-7-10 | 4.8 | 50*50 | 1000*800*840 | 100 | 500 |
| ATG-7-11 | 4.8 | 25*50 | 800*500*540 | 100 | 500 |
1000*800*840 Mm Metal Wire Mesh Storage Cages Pallet Cage Description
Foldable rolling metal storage cage is a very important logistics storage and transportation of containers, and store items with fixed capacity, stacked neatly and stored at a glance, easy to the inventory, at the same time improve the effective utilization of warehouse space.When not used, can foldable and stackable to save storage space.Storage cage commonly used three kinds: the first kind is storage cage with wheels ,the second is storage cage with foot ,can stackable, the third is the combination of the wheels and foot.
1000*800*840 Mm Metal Wire Mesh Storage Cages Pallet Cage Characteristic
1. Made of high quality cold rolled steel welded together, high strength, large load capacity.
2. Sizes is unified, fixed capacity, storage of the goods at a glance, easy to inventory.
3. On the surface of galvanized, beautiful and oxidation resistance, long service life.
4. Can be stacked each other four levels, the realization of three-dimensional storage.
