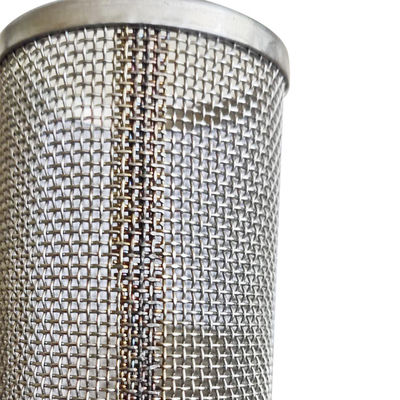

Round Monel Sintered Metal Filter Wire Mesh

Technical parameters
Large pressure difference: 80℃, 3.5kg/m2;235 ℃ and 3.2 Kg /
Accuracy: Liquid 0.5-5um;Gas 0.01 um um - 20
Materials: stainless steel, bronze, nickel, Monel alloy, Hasta nickel alloy
The metal sealing process is adopted, and the operating temperature can reach -200℃~500℃
Product features
High compressive strength, good impact resistance and alternating load resistance
Air permeability, stable separation effect
Fixed hole structure
High mechanical strength and wear resistance
High and low temperature adaptability and chemical stability
Can be repeated online cleaning, blow back
specifications
Diameter: ￠20, ￠30, ￠35, ￠50, ￠60, ￠70, ￠80, ￠135 and non-standard customization
Length: 5 inches (125mm), 10 inches (2 50mm), 12 inches (300mm),
20 inches (500mm), 30 inches (750mm), 40 inches (1000mm)
Interface: M20 interface, M30 interface, 222 interface, 226 interface, double flat port, flange
Filtering accuracy: 0.01um, 0.1um, 0.2um, 0.5um, 1um, 5um, 10um, 20um, 40um
Typical applications
■ Filtration and recovery of catalyst;
■ Filtration of high temperature gas in petrochemical industry;
■ Purification of high temperature flue gas in metallurgical industry;
■ Recovery of dust from tail gas of solid fluidized bed;
■ Dust and tail gas purification in thermal power generation and nuclear power generation industry;
■ Filtration of liquid products and raw materials in chemical industry.
Production and testing equipment

Stainless steel powder sintering filter is made of stainless steel powder through high heat sintering porous, microporous filter material, the filter is usually tubular, plate filter element, we can offer stand-up tube, pipe, welding all kinds of flange, mouth, welded pipe, welded pipe, filter, filter, filter rod and cone filter, filter plate, strip, and all kinds of stainless steel powder sintering abnormity porous filter elements, etc.
Purpose: pneumatic components, ammonia, ammonia, chlorine, fluorine filter, polyester filtering, methanol, benzene and other organic solvent filtration, protein filter, hydraulic oil, fuel filter, gas filter, steam and high temperature gas filter oil field water injection, water filtration, lye filtering, dyestuff, catalyst filter and catalyst separation, liquid and fine filtration of food drink, dyes, inks, such as paraffin and chemical products industry.
Properties: with a variety of different porosity, channel criss-cross, high temperature resistance, resistance to quench and heat.Corrosion. Applicable to a variety of corrosive media such as acid, alkali, stainless steel filter can resist the corrosion of acid and alkali and organic matter, especially suitable for the sulfurous gas filtration. High strength, good toughness, suitable for high pressure environment. Can be welded, to facilitate loading and unloading. Hole shape stability, uniform distribution, ensure the filtering performance is stable. Good regeneration performance. Regenerated repeatedly cleaning filter performance recovery more than 90%.Working environment:
Nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5%, molten sodium, liquid hydrogen, liquid nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen gas, carbon dioxide gas and other environments.
Service temperature: ≤600℃
Filtration accuracy under 98% filtration efficiency: 0.1--80um
Material: S304 S304L S316 S316L
Microporous metal materials made of metal powder sintering, with high temperature resistance, corrosion resistance, uniform pore size distribution, good air permeability, high mechanical strength, cleaning and regeneration, welding and machining and other good characteristics.
Suitable for catalyst recycling, chemical pharmaceutical, beverage, food, metallurgy, petroleum, environmental protection, such as fermentation in the field of gas and liquid filtration and separation, such as separation, such as: solution, oils, beverages, mineral water and other liquid filtration and fine filtration: at the beginning of a variety of other, steam cleaning, in addition to bacteria, in addition to the oil mist, sound attenuation, the flame resistance, the gas cushion, etc.
If the demander has special requirements on the specifications, dimensions and performance of the products, various special-shaped parts may be produced according to the requirements of the Demander.Welcome to inquire
