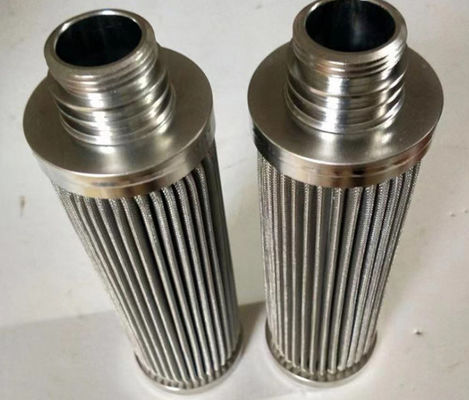

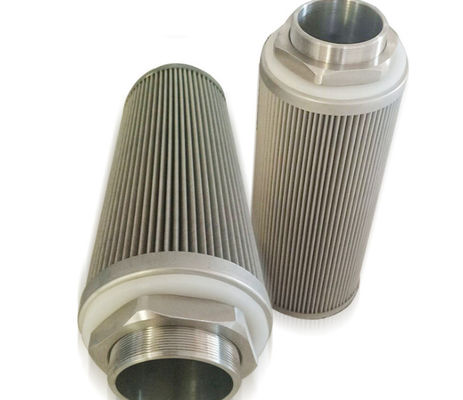

5-40 Inch 226 High Precision Folding 1.7mm Stainless Steel Filter Element 316L

High precision sewage treatment high filtration area folding filter element

Product introduction

Stainless steel folding filter elements are widely used in environmental protection, petroleum, chemical, medical, high temperature gas filtration, scientific research, metallurgy, food, machinery and other industries.

Product parameters

Product features

The filter element of the laminated filter is an impurity treatment carrier, which is composed of a group of double-sided plastic platters with grooves in different directions. The edges of the grooves on the adjacent faces form many cross points. These cross points form a large number of cavities and irregular paths, which are constantly shrinking from the outside to the inside When filtered, these paths lead to turbulence in the water, eventually causing the impurities in the water to be trapped at the intersection points. If the platters are superimposed on the filter core skeleton, a loose outside and tight inside filter unit is formed under the pressure of spring and water The laminate pressed by spring and water pressure in each filter unit forms a filter screen through which countless impurity particles cannot pass. The width of the laminate is 12-14mm. The laminate material is high-quality engineering plastic, with high wear resistance and stainless steel spring support, and the structure is solid The backwash water washes the impurities adhered to the surface of the laminate from inside to outside along the tangent direction of the inner wall of the laminate, and the laminate rotates under the action of the backwash water to ensure that all the dirt is effectively washed and discharged Automatic backwash filter in the case of no interruption of work in a few seconds to complete the entire automatic backwash process using this filter principle in the filter and backwash interval dynamic variable, to improve the filtration performance filtration water quality is very beneficial, but also can greatly reduce the backwash water consumption, usually about 0.5% The different depth and number of grooves on the platter determine the filtration accuracy of the filter unit

Product features

1, stainless steel precision filter element high porosity, good air permeability, small resistance, low pressure difference;
2, stainless steel precision filter into a folded shape, filtration area is large, large amount of pollution;
3, stainless steel precision filter element high temperature resistance, corrosion resistance, suitable for high viscous liquid filtration;
4, good regeneration performance, after chemical cleaning, high temperature and ultrasonic cleaning can be used repeatedly;
5, all stainless steel structure, wide chemical compatibility.
