Product Details:
Payment & Shipping Terms:
|
| Product Name: | Perforated Plate Pipe Filters | Material: | SS304 |
|---|---|---|---|
| Application: | Filters，Decorative | Weight: | Customized |
| Certification: | ISO9001 | Filter Type: | Liquids Filtration |
| Filtration Accuracy: | 5 Micron | Length: | Customized |
| Diameter: | Customized | Color: | Sliver |
| High Light: | 5 micron stainless steel filter element,acid corrosion stainless steel filter element,5 micron wire mesh filter element |
||

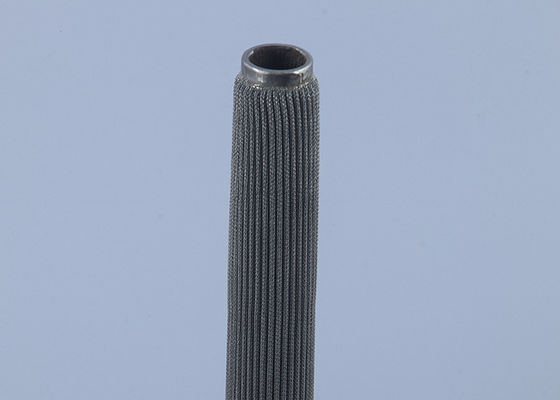

5 Micron Acid Corrosion Antioxidant Properties Perforated Plate Pipe Filters Element
Prforated Plate Pipe Filters Introduction
This product is design for specially High flow rate, High dirt holding capacity and also Design with High Temperature capacity.
The wire mesh is design is Plain Type, Plated Type with single, Double and Multy layer.. And this cartridge is also available with SS Sintered Fiber layer.
Perforated Plate Pipe Filters Parameters:
| Perforated Plate Pipe Filter | |
| Length | 5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm) |
| Diameter | Ø25, 30, 50, 60, 65, 70mm |
| Other dimensions | Customized by customer's request. |
| Material of constructions | |
| Filter media | SUS304, 316, 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request. |
| Outside protection net | Optional |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 1, 3, 5, 10,20, 30, 40, 50, 100um, etc |
| Effective Surface area | 0.65sqm per 10" cartridge element |
| Operation Temperature | ≦480℃ |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0bar |
Perforated Plate Pipe Filters Features and Benefits:
1) Uniform structure, narrow pore size distribution and high separation efficiency.
2) High porosity, low filtration resistance and high permeation efficiency.
3) High temperature, generally about 280 degrees in normal use.
4) Chemical stability, acid corrosion, with antioxidant properties.
5) No particles off, do not make the liquid form a secondary pollution, in line with food hygiene and pharmaceutical GHP
requirements.
6) Mechanical properties, and can be filter press filter, simple operation.
7) Low pressure, small footprint, large flow.
8) Strong anti-microbial capacity, does not work with micro-organisms.
9) Forming process is good, the whole no welding length of up to 1000 mm.
10) Can be online regeneration, easy to clean, long life (usually several times the membrane filter).
Suitable For City Water And Well Water
Including a extra 200μm filter element for free. 40μm filter will capture most particulates, it's best suited for use on Municipal (tap) or City water. If using it on Well, Lake feedwater, you can replace it with the 200μm filter element. Otherwise it may require more frequent flushing to remove the build-up of particulates due to the fine filter mesh used.
About Company
FAQ
Q1. How can we get the quotation of flter cartridges
A: Kindly please let us know the specifications, such as the material, length, micron, adapter, apply in which industry.
Q2. How about your delivery time?
A: Generally, it will take 20 to 25 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order. and if the item was non standard, we have to consider extra 10-15days for tooling / mould made.
Q3. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
