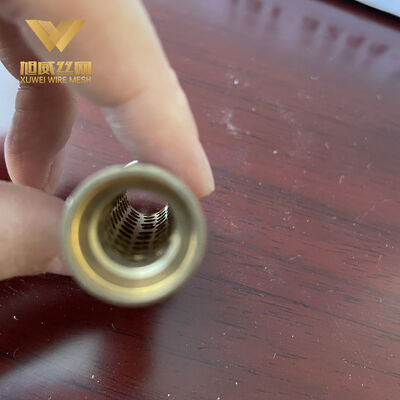

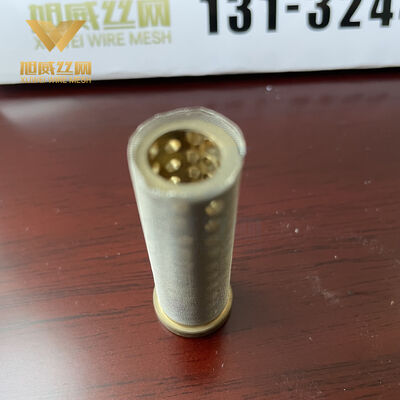

Temperature Resistant Filter Mesh Tube Pipe for food grade

Product Description:

For food, beverage, and dairy processing, stainless steel (SS) mesh filter tubes/pipes must meet FDA, EC 1935/2004, and 3-A Sanitary Standards while withstanding high temperatures (e.g., pasteurization, CIP/SIP). Below are the optimal solutions for food-safe filtration.

1. Material Selection for Food-Grade Mesh Tubes
Material    Max Temp.    Compliance    Best For
SS 316L (EP)    250°C    FDA 21 CFR, EC 1935/2004    Dairy, beer, juices (acidic/alkaline)
Inconel 600    600°C    3-A, EHEDG certified    High-heat frying oil, syrups
PTFE-Lined SS    150°C    FDA-compliant, non-stick    Sticky fluids (honey, chocolate)
Key Requirement: Ra ≤ 0.8 µm (electropolished) to prevent bacterial buildup.

2. Mesh Specifications for Food Processing
A. Particle Retention & Mesh Size
Mesh Size    Micron Rating (µm)    Application Example
30–60    500–250 µm    Pre-filtration (fruit pulp, grains)
80–150    180–100 µm    Liquid clarification (wine, oils)
200–400    75–37 µm    Final polishing (dairy, beverages)
B. Weave Types
Plain Dutch Weave – For high-flow, low-clogging (e.g., beer wort).

Sintered Mesh – Absolute filtration (0.5–50 µm for sterile liquids).

Multi-Layer Mesh – Combines coarse and fine filtration in one tube.

Features:

• Product Name: SS Mesh Filters
• Application: Filtration, Separation, Straining
• Surface Treatment: Electrolytic Polishing, Acid Pickling
• Aperture: 0.5mm - 10mm
• Material: Stainless Steel
• Size: Various Sizes Available

Technical Parameters:

Applications:

XUWEI X0013 SS Mesh Filters are versatile products suitable for a wide range of applications due to their high-quality stainless steel construction and various sizes available. The filters are manufactured in Anping, China, a renowned hub for stainless steel products.

These filters are commonly used as Handle Basket Filters in various industries such as oil, chemical, and food processing. Their durable stainless steel material and weave types (Plain, Twill, Dutch) make them ideal for removing impurities and ensuring product quality.

The XUWEI X0013 SS Mesh Filters are also popular as Stainless Steel Metal Filters in water treatment and filtration systems. Their mesh shape and different weave types offer different filtration levels, making them suitable for both residential and industrial water purification applications.

Another common application scenario for these filters is as Metal Shower Filters, where they help remove impurities and sediments from water, providing a cleaner and safer showering experience. Additionally, they are used as Water Heater Pre-Filters to prevent sediment buildup in water heaters, extending their lifespan and efficiency.

With a thickness ranging from 0.5mm to 5mm, these filters are robust and long-lasting, ensuring reliable performance in demanding environments. Their versatility in size and material make them suitable for a wide range of filtration tasks, from small-scale domestic use to large-scale industrial processes.

Customization:

Customize your SS Mesh Filters with our Product Customization Services:

Brand Name: XUWEI

Model Number: X0013

Place Of Origin: Anping, China

Size: Various Sizes Available

Type: Filter

Aperture: 0.5mm - 10mm

Surface Treatment: Electrolytic Polishing, Acid Pickling

Temperature Resistance: Up To 800°C

Product Attributes include Mental Mesh Basket Filter, Filter Mesh Tube Pipe, Stainless Steel Metal Filters.

Support and Services:

Our Product Technical Support and Services for SS Mesh Filters include:

1. Expert assistance with product installation and usage

2. Troubleshooting and diagnosing technical issues

3. Maintenance tips and recommendations

4. Product warranty information and claims process

5. Upgrades and customization options

Packing and Shipping:

Product Name: SS Mesh Filters

Description: High-quality stainless steel mesh filters for various applications.

Features: Durable, corrosion-resistant, easy to clean.

Package Includes: Set of 5 SS Mesh Filters

Shipping: Standard shipping within 3-5 business days.

FAQ:

Q: What is the brand name of the SS Mesh Filters?

A: The brand name of the SS Mesh Filters is XUWEI.

Q: What is the model number of the SS Mesh Filters?

A: The model number of the SS Mesh Filters is X0013.

Q: Where is the SS Mesh Filters manufactured?

A: The SS Mesh Filters are manufactured in Anping, China.

Q: Are the SS Mesh Filters suitable for high-temperature applications?

A: Yes, the SS Mesh Filters are suitable for high-temperature applications.

Q: Can the SS Mesh Filters be easily cleaned and reused?

A: Yes, the SS Mesh Filters can be easily cleaned and reused for extended use.
