Product Details:
Payment & Shipping Terms:
|
| Material: | Metal,Stainless Steel 304L,316L ,Monel ,Nickle | Place Of Origin: | Hebei, China |
|---|---|---|---|
| Thickness: | 0.08mm-0.30mm | Length: | As The Customer Requirement |
| Package: | Wooden Box Or As Request | Filtration Rate: | 99% |
| Wire Diameter:: | 0.08mm-0.30mm Knitted Wire Mesh Demister | Certificate: | ISO9001:2008 |
| High Light: | wire mesh mist eliminator,oil demister filter |
||

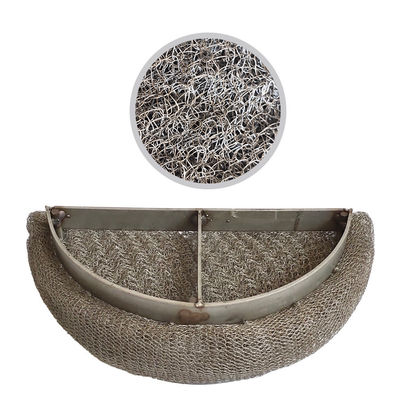

Description of Demister Pad
Wire mesh mist eliminator also known as wire mesh demister, is a kind of vapor liquid separating device.It is made up of many corrugated gas liquid filter net,a grid and a fixed distance rod .It is most often used to separate liquid drop with diameter of more than 3-5 μm in the separation tower.It can ensure the mass transfer efficiency,reduce the loss of valuable materials after operation of compressor, commonly setted in the top of device.It is widely used in gas-liquid separation in chemical, petroleum, sulfate, medicine, light industry, metallurgy, machine, building, construction, aviation, shipping and environment protection.
Specification of Demister Pad
Standard Type
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3) |
Surface Area α (m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 150 | Flat Wire | Round Wire | 0.981 |
| 0.1*0.4 | 0.23 | 475 | 320 | |||
High Penetration
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3) |
Surface Area α(m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 98 | Flat Wire | Round Wire | 0.9875 |
| 0.1*0.4 | 0.23 | 313 | 217 | |||
High Efficiency
|
Wire Diameter dw(mm) |
Width Tolerance (mm) |
Density ρ(kg/m3 ) |
Surface Area α(m2/m3) |
Void Fraction ε |
||
| Flat Wire | Round Wire | ±20 | 182 | Flat Wire | Round Wire | 0.977 |
| 0.1*0.28 | 0.19 | 626 | 484 | |||
