Liquid And Gas Filtration Sintered Filter Element Rating 1-200 Microns
Product Details
| Key | Sintered Filter | Production Name | Rating 1-200 Microns For Liquid And Gas Filtration |
|---|---|---|---|
| Thread | 1/4"，1/2"and So On | Micron | 1-1000um |
| Density | 4.5-5.5 | Pressure Rating | Up To 10 Bar |
| Wall Thickness | ≥1.7mm | Operating Temperature | Up To 500°C |
| Use | Air Filter | Filter Rating | 1-300um |
| Highlight | filtration sintered filter element,gas filtration sintered filter element,liquid sintered metal filter elements |
||
Product Description

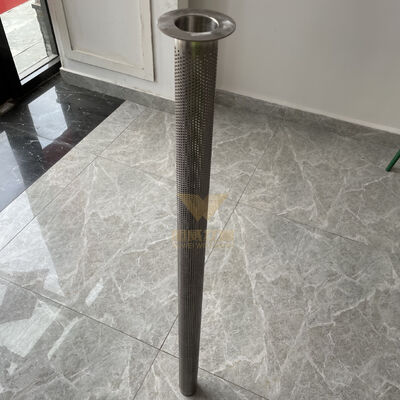

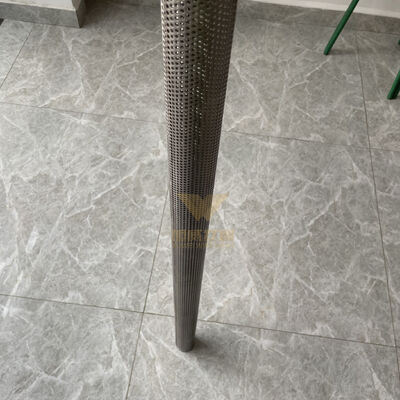

Rating 1-200 Microns Sintered Filter for Liquid and Gas Filtration
Product Description:
Product Overview
High-performance sintered filters providing absolute-rated filtration from 1 to 200 microns, designed for critical liquid and gas applications across industries. The uniform porous structure ensures consistent particle retention while maintaining high flow rates and low pressure drop.
Key Advantages
✔ Precision Filtration – Tight pore size distribution (±5% tolerance)
✔ Bidirectional Flow – Effective in both forward and reverse flow
✔ Extreme Conditions Ready – Withstands 1000°C & 50MPa pressure
✔ Material Versatility – SS304/316L, Inconel, Monel, Titanium
✔ Reusable Design – Cleanable via backflush, ultrasonic, or chemical methods
Technical Specifications
Parameter Liquid Filtration Gas Filtration
Micron Range 1-200μm 5-200μm
Porosity 30-50% 40-60%
Flow Rate 0.5-20m³/h (per 10" element) 600-1500L/dm²/min
Max Temperature 400°C (SS316L) 1000°C (Inconel)
Pressure Rating 50MPa 10MPa
Bubble Point 0.2-15psi (micron-dependent) N/A
Features:
- Product Name: Sintered Filter Element
- Filter Rating: 1-300um
- Filtration Rating: 1-200 Microns
- Wall Thickness: ≥1.7mm
- Micron: 1-1000um
- Flow Rate: Up To 500 L/min
Technical Parameters:
| Micron | 1-1000um |
| Wall Thickness | ≥1.7mm |
| Aperture Rate | ≥40% |
| Pressure Rating | Up To 10 Bar |
| Application | Liquid And Gas Filtration |
| Operating Temperature | Up To 500°C |
| Filter Rating | 1-300um |
| Flow Rate | Up To 500 L/min |
| Technology | Sintered |
| Air Permeability | ≥600 L / Dm² /Min |
Applications:
With a filtration rating ranging from 1 to 200 microns, the Xuwei XW-F1 is ideal for applications that require fine particle filtration, ensuring clean and pure air output. The wall thickness of the filter element is equal to or greater than 1.7mm, providing durability and longevity in operation.
One of the key features of the Xuwei XW-F1 Sintered Filter Element is its sintered technology, which involves compacting and sintering metal powders to create a strong and porous structure for effective filtration. This technology ensures reliable performance and consistent filtration results.
Whether used as an air filter in manufacturing plants, automotive facilities, or HVAC systems, the Xuwei XW-F1 Sintered Filter Element excels in removing contaminants and impurities from the air stream. Its versatility allows for seamless integration into various systems, providing clean and purified air for optimal performance.
From sintered wire mesh to sintered filter tubes, the Xuwei XW-F1 offers a range of configurations to suit different application requirements. Its precision engineering and high-quality materials make it a dependable choice for demanding filtration tasks across industries.
Overall, the Xuwei XW-F1 Sintered Filter Element is a reliable and efficient solution for air filtration needs, delivering superior performance in diverse environments and applications.
Customization:
Product Customization Services for the Sintered Powder Metal Filter element:
Brand Name: Xuwei
Model Number: XW-F1
Place Of Origin: China
Application: Liquid And Gas Filtration
Micron: 1-1000um
Operating Temperature: Up To 500°C
Technology: Sintered
Filtration Rating: 1-200 Microns
Support and Services:
The Sintered Filter Element product offers comprehensive Product Technical Support and Services to ensure optimal performance and customer satisfaction. Our dedicated team of experts is available to provide assistance with installation, troubleshooting, and maintenance of the filter element. Additionally, we offer training programs to educate users on best practices and help maximize the lifespan of the product.
Packing and Shipping:
Product Packaging:
The Sintered Filter Element is carefully packaged in a sturdy cardboard box to ensure safe transport and delivery. The product is sealed within protective packaging materials to prevent any damage during shipping.
Shipping:
Our team will process your order promptly and securely pack the Sintered Filter Element to be shipped via a reliable carrier service. You will receive a tracking number to monitor the status of your shipment and can expect your product to arrive in excellent condition.
FAQ:
Q: What is the brand name of this filter element?
A: The brand name is Xuwei.
Q: What is the model number of this filter element?
A: The model number is XW-F1.
Q: Where is this filter element manufactured?
A: This filter element is made in China.
Q: What material is used for the Sintered Filter Element?
A: The Sintered Filter Element is made of high-quality stainless steel.
Q: Is the Xuwei XW-F1 Sintered Filter Element suitable for high-temperature applications?
A: Yes, the Xuwei XW-F1 Sintered Filter Element is designed to withstand high temperatures, making it suitable for various industrial applications.
