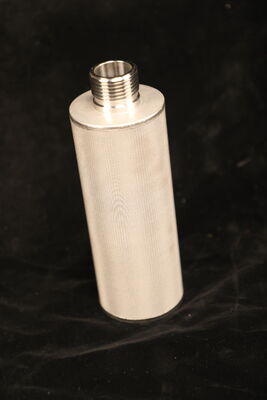

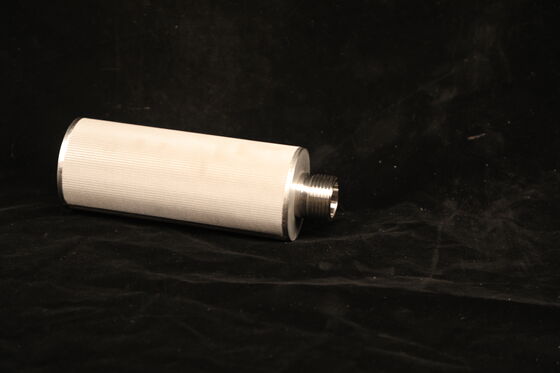

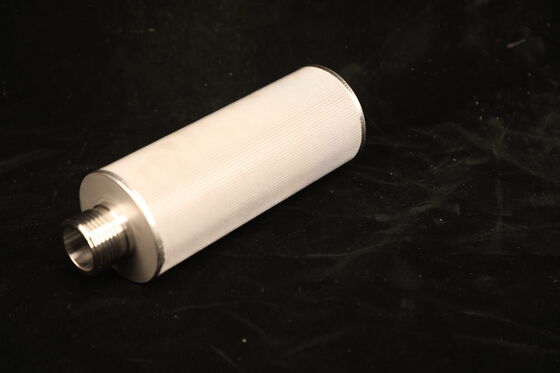

High Temperature Sterilizable Sintered Metal Filter Element Suitable For Liquid Filtration

High Temperature Sterilizable Sintered Metal Filter Element Suitable For Liquid FiltrationDescription:

Key Features
✔ High Porosity (≥40%) – Optimized for low flow resistance & high permeability
✔ Precise Filtration (1μm–300μm) – Customizable micron ratings
✔ Robust Construction – Sintered multilayer mesh for high strength & durability
✔ Wide Material Selection – Stainless steel (304, 316L), nickel, titanium, and specialty alloys
✔ High-Temperature & Corrosion Resistant – Suitable for harsh industrial environments
✔ Easy to Clean & Reusable – Backflushable, chemical-cleaning compatible
Technical Specifications
Parameter    Details
Aperture Rate    ≥40% (up to 50% customizable)
Filtration Grade    1μm – 300μm (adjustable)
Material Options    304, 316L SS, Nickel, Titanium, Monel, Hastelloy®
Max Temperature    Up to 650°C (material-dependent)
Max Pressure    Up to 10MPa (100 bar)
Shape & Size    Discs, tubes, cartridges, custom geometries

Features:

• Sintered Powder Metal Filter element
• Sintered Filter Cylinder
• Sintered Wire Mesh Filters
• Product Name: Sintered Filter Element
• Operating Temperature: Up To 500°C
• Use: Air Filter
• Thread: 1/4", 1/2" and So On
• Filtration Rating: 1-200 Microns
• Aperture Rate: ≥40%

Technical Parameters:

Applications:

The Xuwei XW-F1 Sintered Filter Element is a high-quality filtration product originating from China. With a filtration rating ranging from 1 to 200 microns, this filter element is designed for both liquid and gas filtration applications. Its versatility makes it suitable for various scenarios where efficient filtration is crucial.
The product is available in different thread sizes such as 1/4" and 1/2", providing flexibility for installation in different systems. The filter rating of 1-300um ensures that it can effectively capture particles of various sizes, making it a reliable choice for a wide range of filtration needs.
Constructed using sintered wire mesh filters, the Xuwei XW-F1 Sintered Filter Element offers excellent air permeability of ≥600 L / Dm² /Min. This feature enables efficient filtration while maintaining optimal airflow, making it ideal for applications where both filtration and airflow are important.
Whether it is in industrial settings, laboratories, or environmental control systems, the Xuwei XW-F1 Sintered Filter Element excels in providing clean and purified fluids or gases. Its durable construction and high filtration efficiency make it a dependable choice for critical filtration tasks.
The sintered filter cylinder design of this filter element ensures uniform filtration performance and long service life. Its robust build can withstand demanding operating conditions, making it suitable for use in challenging environments where reliable filtration is essential.
In conclusion, the Xuwei XW-F1 Sintered Filter Element is a versatile and reliable filtration solution suitable for a wide range of applications. With its advanced sintered wire mesh filters, high air permeability, and durable construction, this filter element is a dependable choice for achieving efficient filtration in various scenarios.

Customization:

Product Customization Services for the Sintered Filter Element:
Brand Name: Xuwei
Model Number: XW-F1
Place Of Origin: China
Aperture Rate: ≥40%
Wall Thickness: ≥1.7mm
Filtration Rating: 1-200 Microns
Operating Temperature: -200-480℃
Pressure Rating: Up To 10 Bar
Customize your Sintered Filter Element with our Sintered Wire Mesh to meet your specific requirements. Whether you need a Sintered Filter Cylinder, Sintered Filter Tube, or any other customized design, we can provide tailor-made solutions to suit your needs.

Support and Services:

The Product Technical Support and Services for the Sintered Filter Element include:
- Assistance with installation and setup of the filter element.
- Troubleshooting support for any issues encountered with the product.
- Guidance on maintenance and cleaning procedures to ensure optimal performance.
- Recommendations for replacement parts or upgrades, if necessary.
- Training sessions or resources for users to learn more about the product and its capabilities.

Packing and Shipping:

Product Packaging:
The Sintered Filter Element is carefully packaged in a protective casing to prevent any damage during transit. Each filter element is wrapped in bubble wrap and placed securely in a sturdy cardboard box.
Shipping:
Orders for the Sintered Filter Element are typically shipped within 1-2 business days after payment confirmation. We use trusted shipping carriers to ensure safe and timely delivery of your product. You will receive a tracking number once your order has been dispatched so you can monitor the shipping status.

FAQ:

Q: What is the brand name of this sintered filter element?
A: The brand name is Xuwei.
Q: What is the model number of this sintered filter element?
A: The model number is XW-F1.
Q: Where is this sintered filter element manufactured?
A: This filter element is made in China.
Q: What are the key features of the Xuwei XW-F1 sintered filter element?
A: The key features include high filtration efficiency, durability, and suitability for various applications.
Q: Can the Xuwei XW-F1 sintered filter element be used in high-temperature environments?
A: Yes, this filter element is designed to withstand high-temperature conditions.
